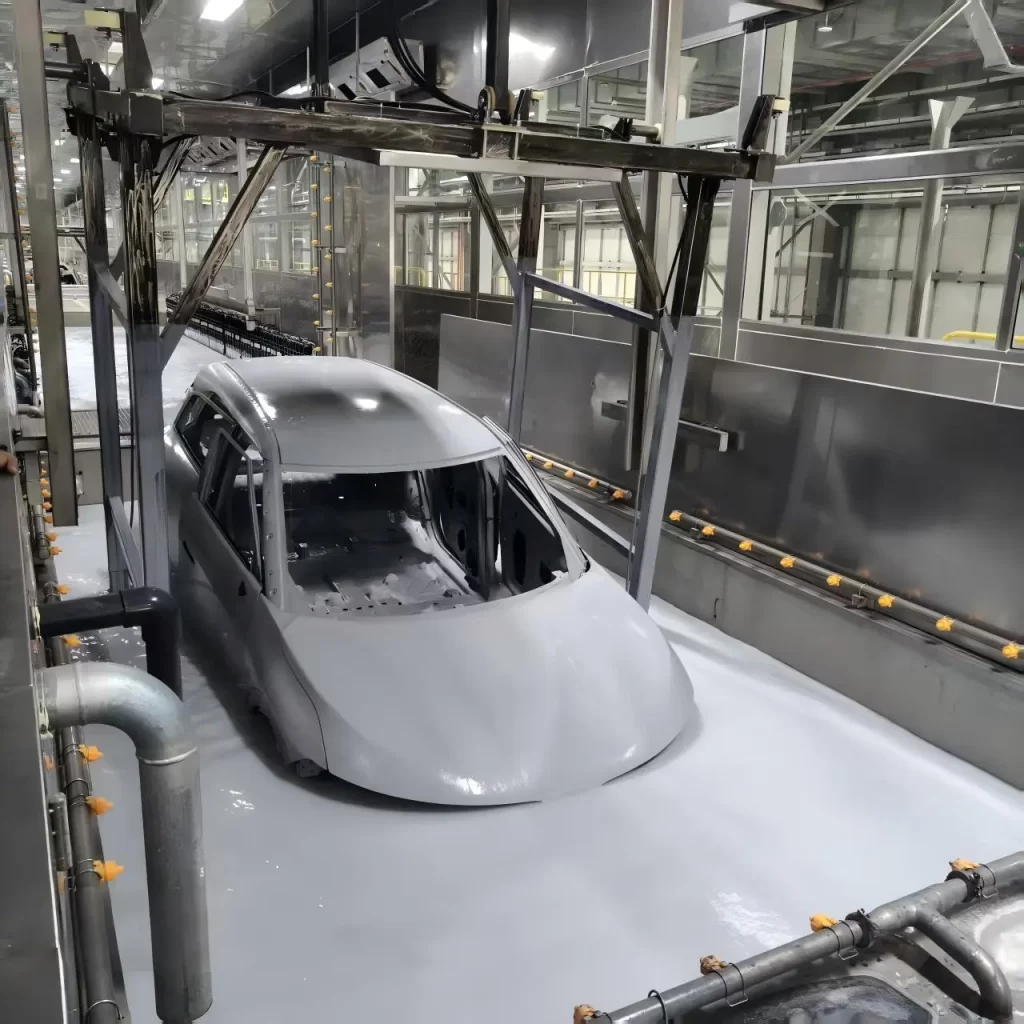

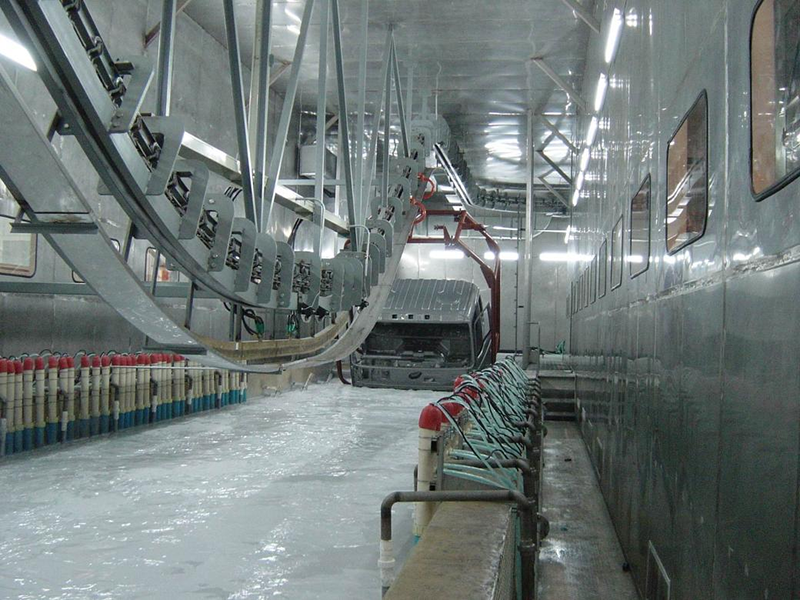

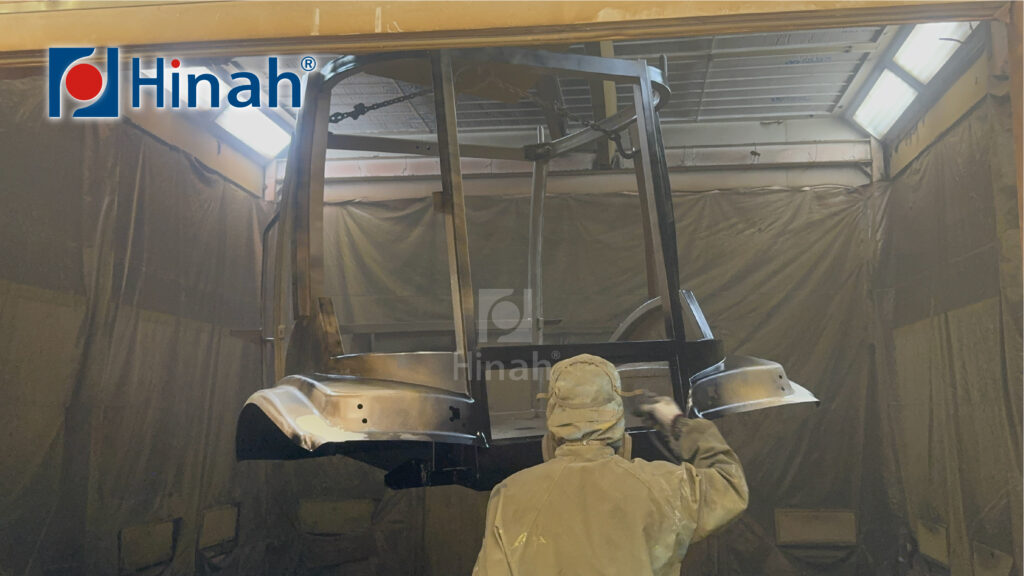

If the film thickness from an e-coating process is too thin, voltage is often one of the first parameters engineers check. But simply increasing the voltage is not always the right answer. In an e coat line, voltage affects the electrical field between the workpiece and the electrodes. This electrical field drives charged paint particles toward the metal surface. As the coating builds, the new film becomes more resistant to current flow. The deposition rate then starts to slow down.
So, how exactly does voltage affect film thickness? The answer is closely related to current, coating resistance, bath conditions, and deposition time.
Why Does Voltage Affect E-Coating Film Thickness?
E-coating is an electrochemical deposition process. The workpiece acts as one electrode, while the counter-electrodes complete the electrical circuit through the paint bath.
When the rectifier applies voltage, an electrical field develops in the tank. Charged paint particles move toward the workpiece and deposit on its surface. The stronger electrical driving force can increase the initial deposition rate.
However, film growth does not continue at the same rate throughout the cycle.
As the coating becomes thicker, it creates greater electrical resistance between the bath and the metal surface. Current flow decreases, and paint deposition gradually becomes slower.
This explains why voltage has a strong influence on film thickness, but the relationship is not simply: Higher voltage = unlimited film thickness.
The coating system eventually reaches a point where additional voltage produces less additional film build.
What Happens When Electrocoating Voltage Is Increased?
Within the normal operating range of a coating system, increasing voltage generally increases the deposition rate and can produce a thicker film.
However, the result depends on the complete process.
For example, two systems can use the same voltage but produce different film thicknesses because their bath conductivity, temperature, coating chemistry, immersion time, or workpiece geometry differ.
This is particularly important when designing an e coat line. The rectifier should provide stable and controllable voltage rather than simply offering a high maximum output.
A stable electrical supply also helps engineers identify process changes. If voltage and current remain consistent while film thickness suddenly changes, the problem may come from bath conditions or another part of the process.
Does Higher Voltage Always Mean a Thicker Coating?
No.
Increasing voltage can increase film build, but pushing voltage beyond the suitable process range can create other problems. Excessive electrical activity may increase gas generation and surface defects. It can also make the coating less uniform on complex parts.
The relationship also depends on the coating chemistry. Different formulations have different deposition characteristics and operating windows.
That is why an e coat line should never use a universal voltage setting copied from another project. The coating supplier’s technical specification should define the appropriate operating range for the specific paint system.
The equipment then needs to provide accurate control within that range.
What Other Factors Affect Film Thickness?
Voltage is only one part of the equation.
Bath Conductivity
The paint bath must provide a suitable path for electrical current. Changes in conductivity can affect current flow and therefore change the deposition behavior.
If conductivity moves away from the required range, adjusting voltage alone may not restore the expected film thickness.
Bath Temperature
Temperature affects the physical and chemical behavior of the coating bath. A temperature change can therefore influence deposition even when the rectifier keeps the same voltage.
For this reason, temperature should remain within the coating supplier’s specified range during production.
Immersion Time
The longer a workpiece remains in the tank, the more time the coating has to develop.
However, deposition slows as the film becomes more electrically resistant. Therefore, extending immersion time does not produce a simple proportional increase in film thickness.
Workpiece Geometry
Large flat surfaces, recessed areas, edges, and internal sections do not always receive the same electrical field.

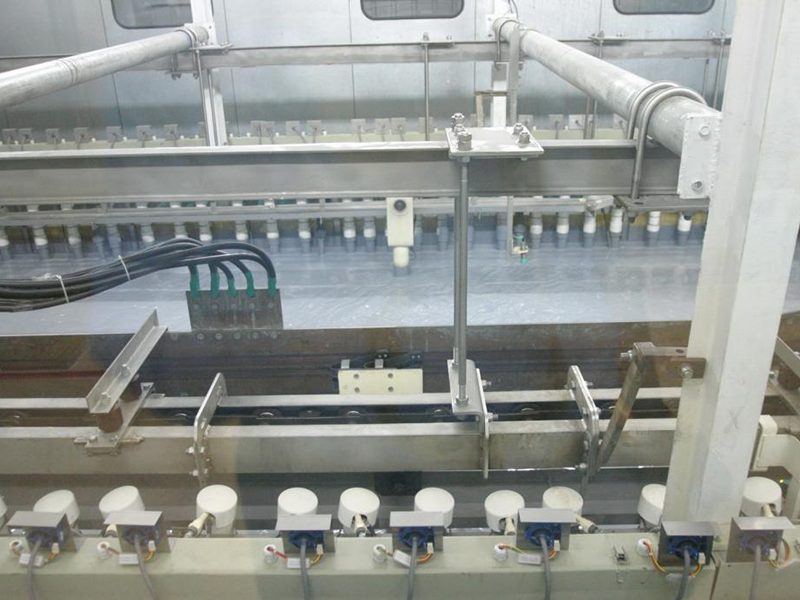

The position of the workpiece and counter-electrodes also matters. This is why electrode arrangement and hanger design require careful consideration when engineers design an e coat line.
Pretreatment Quality
The metal surface must enter the e-coating tank in a suitable condition. Poor cleaning or conversion treatment can affect adhesion and coating performance.
Therefore, a film-thickness problem should not automatically lead to a voltage adjustment. The pretreatment stages should also be checked.
How Do You Adjust Voltage in an E Coat Line?
A better approach is to establish a controlled operating window instead of chasing film thickness with voltage changes.
Start with the coating supplier’s recommended process parameters. Then record voltage, current, bath temperature, conductivity, immersion time, and film thickness during stable production.
If the measured film thickness is consistently below the target, engineers can evaluate whether voltage needs adjustment.
However, if only certain areas of the workpiece show low film thickness, the cause may be electrical field distribution, part geometry, electrode position, or bath circulation.
This distinction saves a lot of unnecessary adjustments.
It also makes troubleshooting much easier because each process variable has a defined role.
How Should E-Coating Film Thickness Be Measured?
Film thickness should be measured with a method suitable for the coating and substrate.
ASTM E376-26 covers magnetic-field and eddy-current methods for nondestructive coating-thickness measurement on electrically conducting metal substrates. The standard also notes that measurement accuracy depends on the coating-substrate combination and the selected instrument.
NIST also references ASTM B659 as a guide for measuring metallic and inorganic coating thickness and notes that different measurement methods apply to different coating and substrate combinations.
For production control, measurements should come from defined locations on the workpiece. Checking several representative points gives a much better picture than relying on one reading.
How Can an E Coat Line Maintain Stable Film Thickness?
Stable film thickness comes from controlling several parameters together.
A practical control routine should include:
- Keep voltage within the specified operating range.
- Monitor current during the coating cycle.
- Maintain stable bath temperature and conductivity.
- Keep immersion time consistent.
- Check pretreatment quality.
- Inspect electrode condition and positioning.
- Measure film thickness at defined points.
- Record process data when film thickness changes.
The key is to look at trends rather than one isolated reading.
For example, if voltage remains stable but current gradually changes, that may indicate a change in bath condition or coating behavior. If current remains stable but one area of a large workpiece becomes thin, the electrical field or workpiece positioning may deserve attention.
Final Takeaway
Voltage plays an important role in controlling film thickness during electrodeposition. A higher voltage can increase the initial deposition rate, but film growth gradually slows as the deposited coating becomes more resistant to electrical current.
For an e coat line, the best approach is therefore not to use the highest possible voltage. Instead, the electrical system should provide stable control within the coating system’s specified range.
When film thickness changes, check voltage together with current, bath conductivity, temperature, immersion time, pretreatment, electrode arrangement, and workpiece geometry.
That complete view gives engineers a much more reliable way to maintain consistent coating quality.
